| MODEL NO | LTN051280A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | |
Capacity (Ah) | 280 | |
| Scalability | Max.16pcs in parallel (262kWh) | |
Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 46-56 | |
Energy (kWh) | 14.34 | |
Recomend Discharge Energy (80% DOD) (kWh) | 13.10 | |
Charge/Discharge Current (A) | Recommend | 100 |
Max. | 150 | |
Peak(2mins,25℃) | 200 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 80% | |
| Dimension (W/H/D,mm) | 900*675*200 | |
Weight Approximate (kg) | 128.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
| 2 LED (working, alarming, protecting) | ||
IP Rating of Enclosur | IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥10000 | |
| Installation | Wallmounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 15 years | |
| Life Cycle Power During Warranty Period | 89.68MWh@80% EOL | |
| Certification | UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3 | |

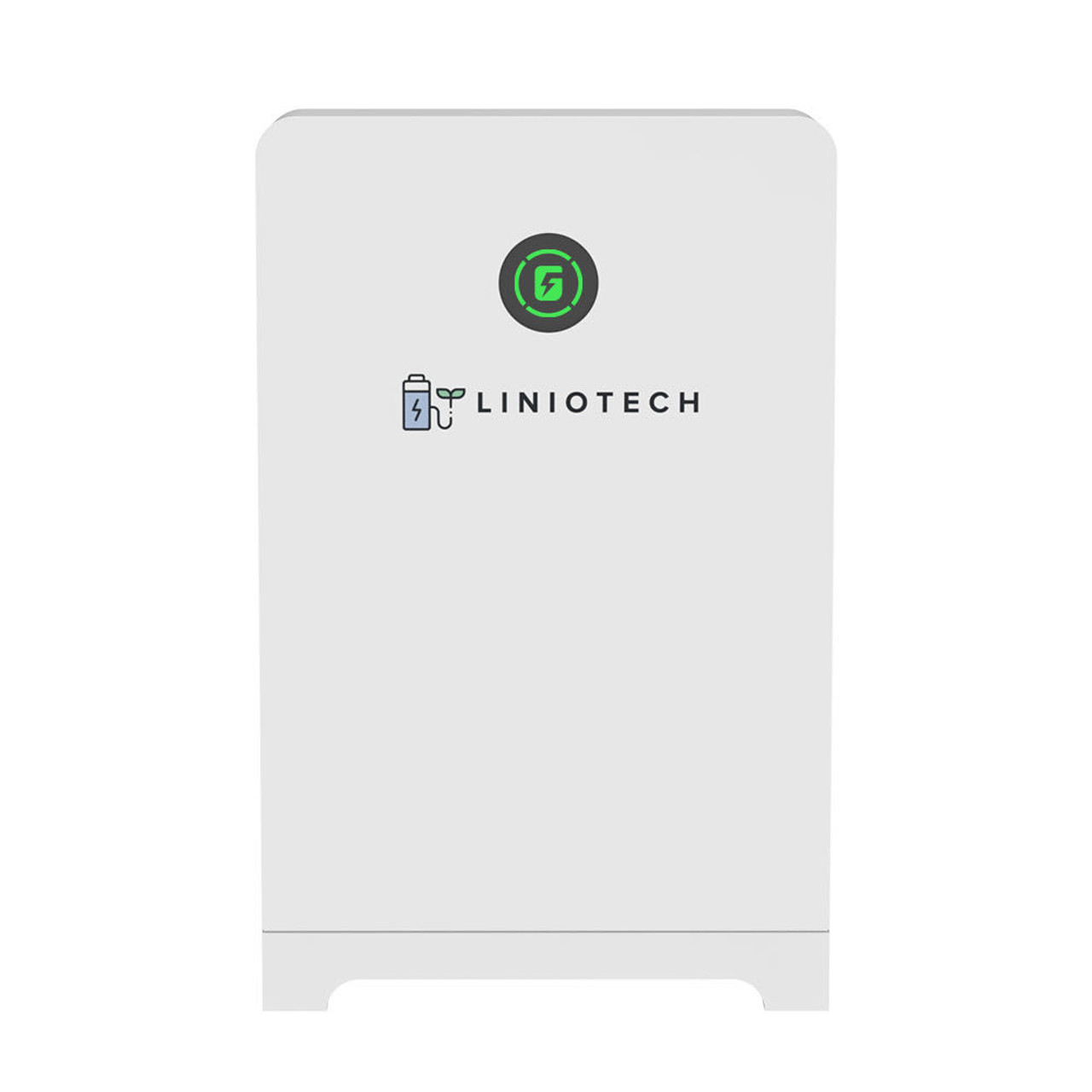

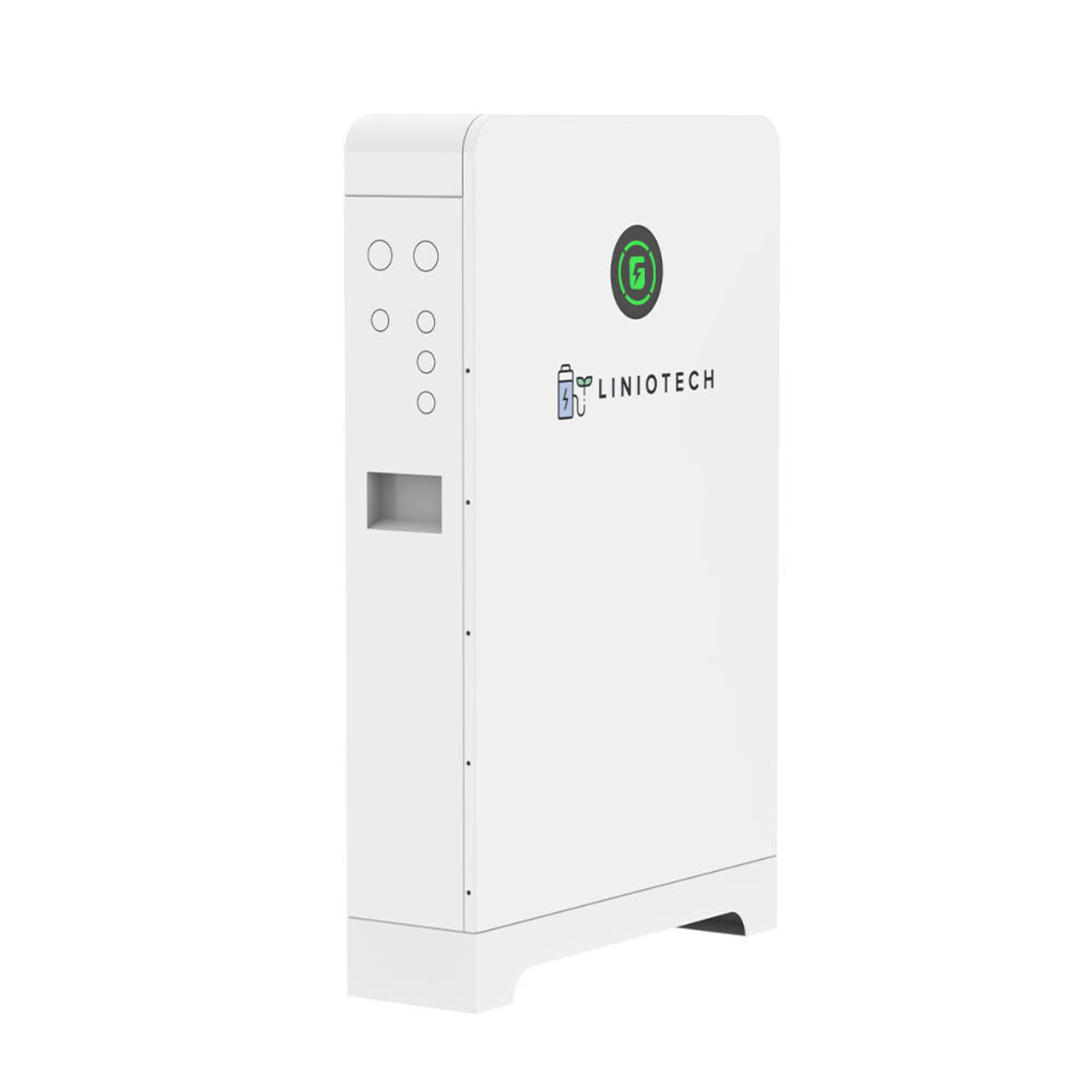

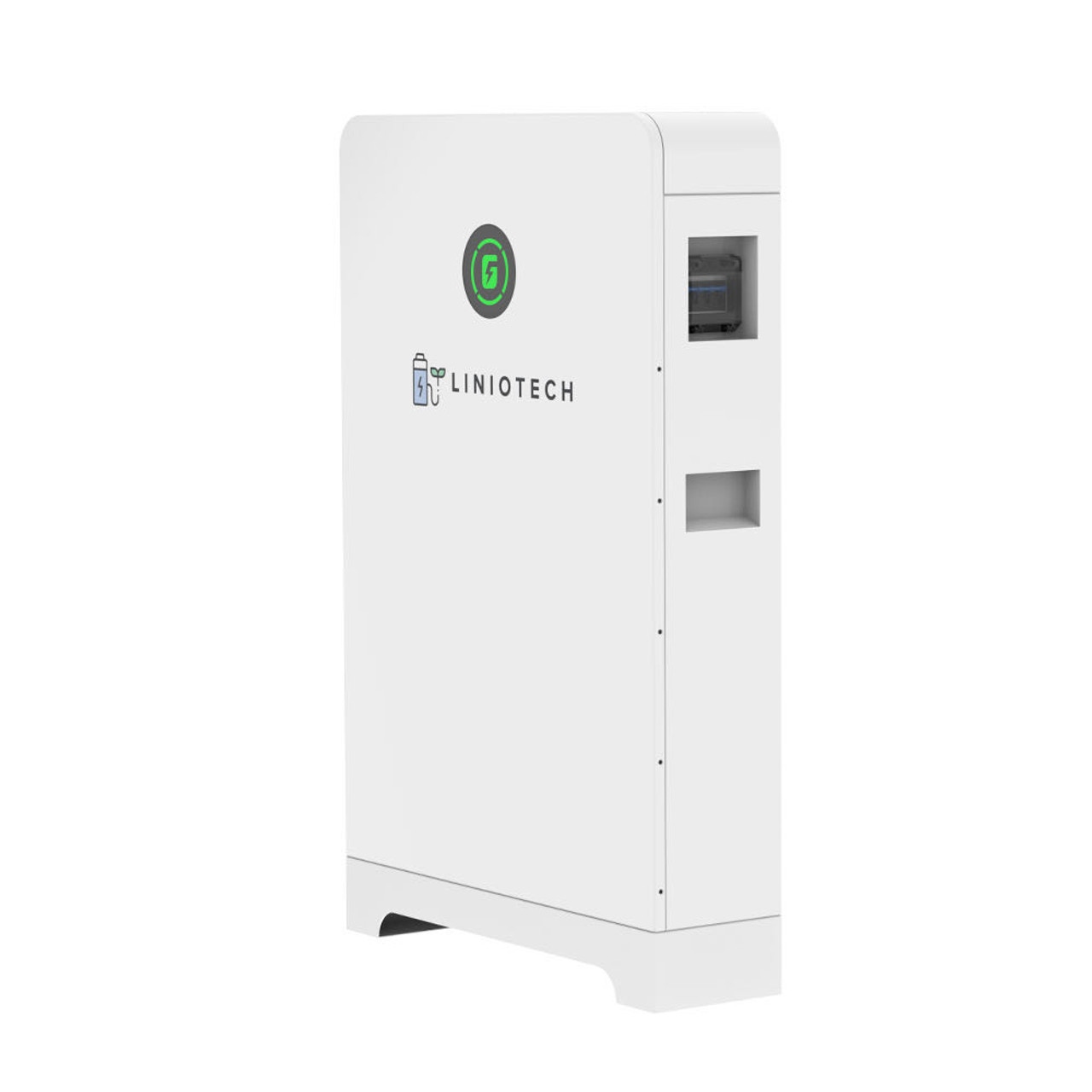

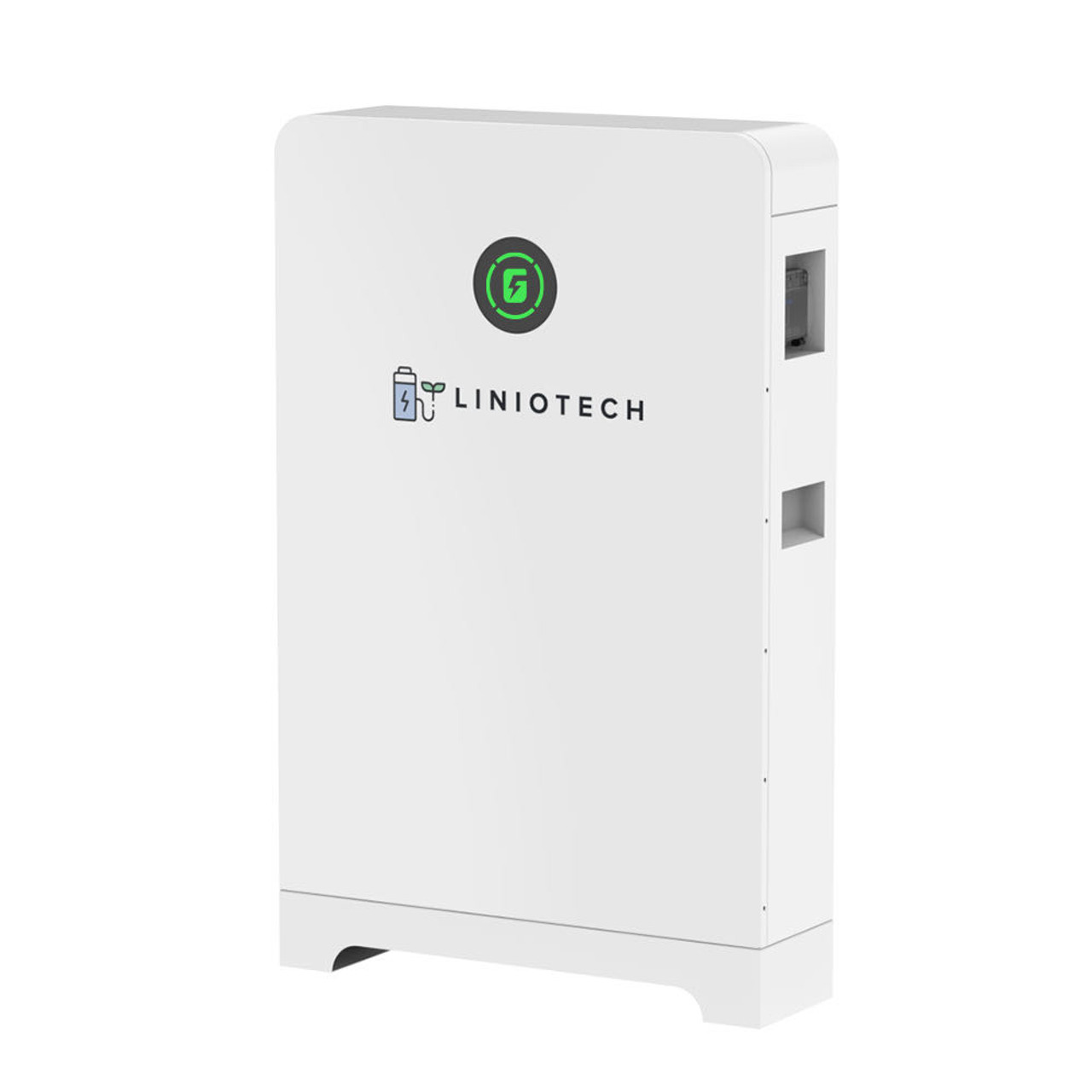

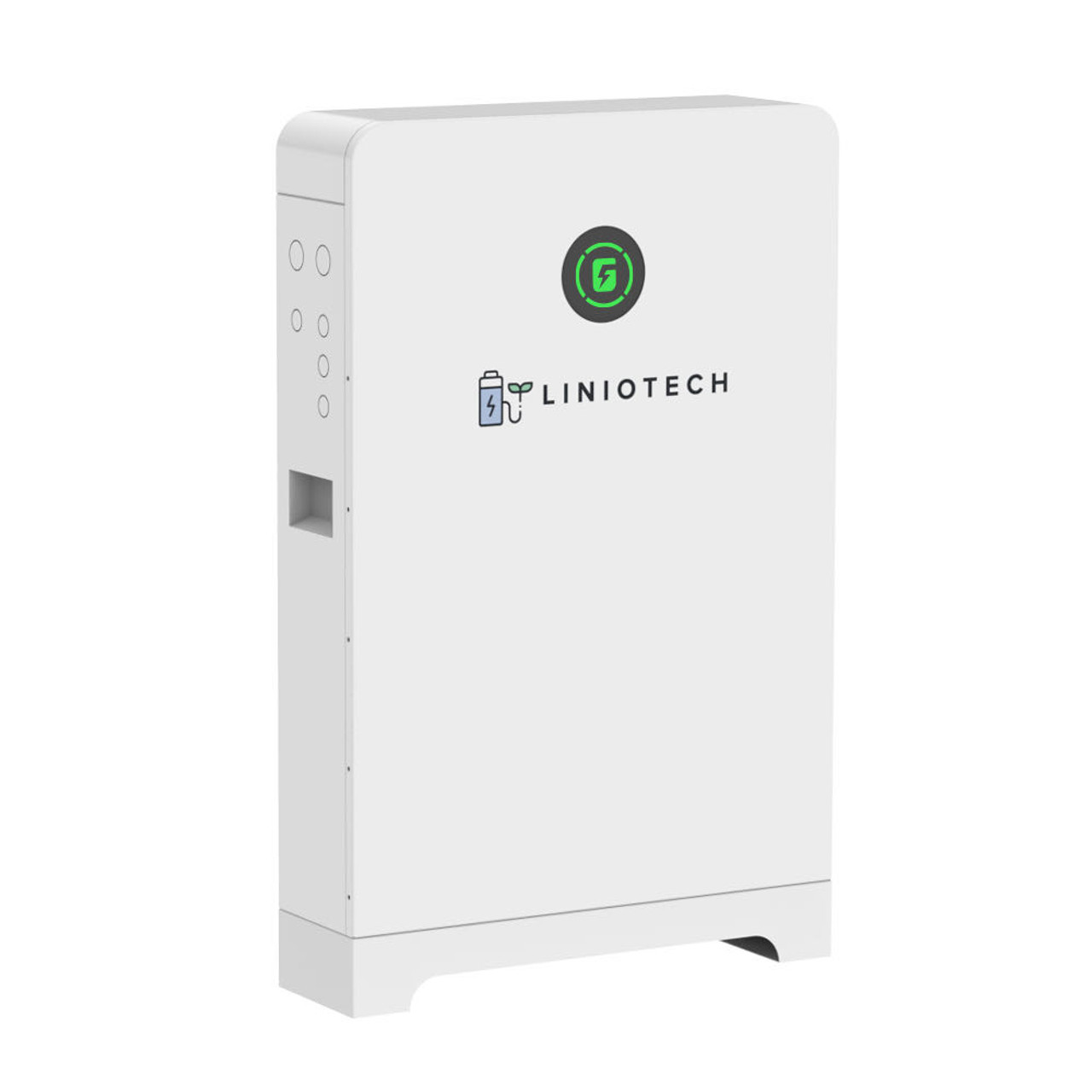

LTN Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other GSL products to save money, reduce your carbon footprint and prepare your home for power outages.
